The Dredger Ship Is Easy To Operate, The Whole Ship Is Equipped With A Hydraulic System, And Can Be Quickly Disassembled
1. About Leader Dredger Cutter Suction Dredger:
1. Simple and quick assembly and disassembly
2. More choices for accessories and floating pipes
3. Can be transported by road, rail or sea
4. Reliable hydraulic system
5. Brand engine, providing continuous and stable power
6. Single operation
7. Professional after-sales service
2. Why Choose Leader Dredger dredger ship:
1. It has the characteristics of strong adaptability to geographical environment, simple structure, easy maintenance, reliable performance, long service life, low cost and heavy workload. It is an ideal choice for sand mining in sand fields and river channels.
2. It can also be used for salt lake salt mining, offshore and river dredging, hard river bed mining, waterway improvement and development. The dredged sand after sieving and separation is pure and free of impurities, making it an ideal choice for the construction industry.
3. Leader Dredger LD4500 dredger ship Technical Specifications
A . Dredging Features
| Standard dredging depth(m) | 15m |
| Maximum mixture capacity(m/h) | 4500m³/h |
| Solid capacity(approx) | 900m³/h |
| Dredging pump mode | 550/500mm |
B . Principal characteristics
| Overall length(m) | 38.5m |
| Breadth(m) | 7.8m |
| Draught(m) | 1.3m |
| Discharge distance(m) | 2000m |
| Total dry weight approx(MT) | 200MT |
| Ladder length | 21m |
C . Dredge pump: Australia technology Pump
| By alloy cast iron material for better abrasion resistance, abrasive, hardness, more than68HRC. | Bigger working capacity, more efficiency, driven through gearbox. |
| Maximum mixture capacity(m/h) | 4500m³/h |
| Solid capacity(approx) | 900m³/h |
D . Engine
| Main diesel engine(Cummins) | CAT 3512C 955kw |
| Auxilary engine | CAT C9.3 325KW |
| Total fuel consumption | ≤205kg/hr |
| Extra emergency generator set | 30kw(40Hp) |
5. Leader Dredger will provide before selling the product:
1, Consulting and design services
2, Provide program support based on customer's working conditions
3, Provide accessories recommendations based on customer requirements
4, Site installation guide
5, Overall debugging
6, Pre-job training
7, Tracking guidance service
8, Provide one year after-sales
9, Provide permanent accessories or consulting services
5. Hydraulic System: German Brand Hydraulic Parts:
To drive: 1 cutter header, 1 ladder winch, 2 side winches,2 spud rams, 2 hydraulic pumps, and a lot of hydraulic valves The extra emergency pump can drive all hydraulic parts using the extra emergency generator set.
6.Leader Dredger dredger ship Customer
7. LD4500 dredger ship
Product Tags:
|
|

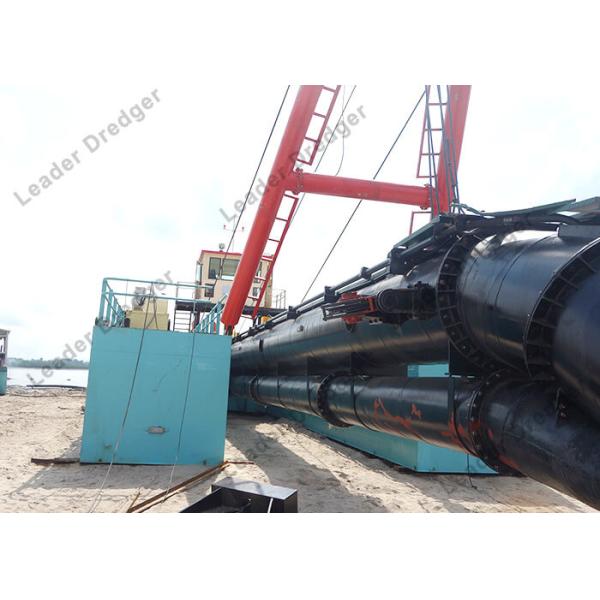

40Hp 22'' Dredger Ship With Hydraulic System Images
|
